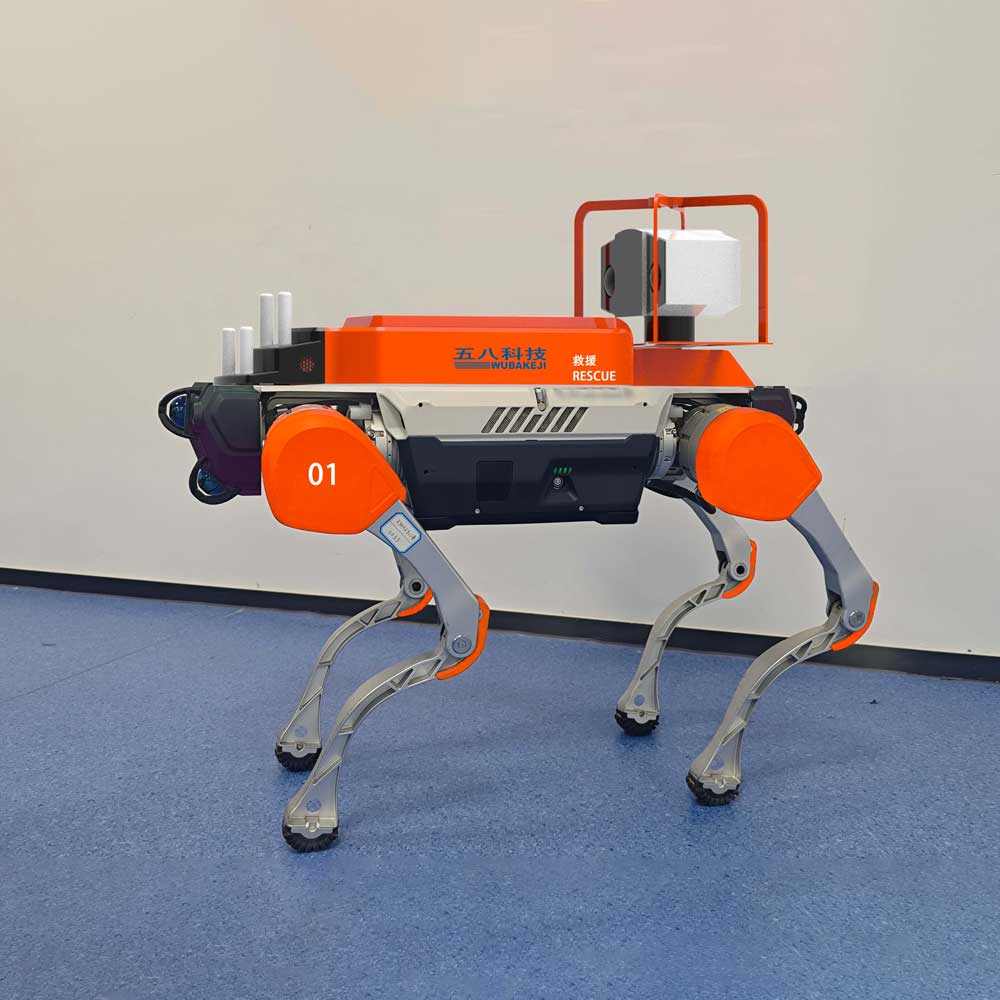

Intelligent Quadruped Robotic Dog Platform - SNOW MASTIFF Q20A from China Suppliers and Factory
Main Features of the Quadruped Robotic Dog
Feature 01
All-Terrain Adaptability
Utilizing a bionic quadruped structure, advanced motion control algorithms, and navigation positioning algorithms, the robotic dog efficiently traverses complex terrains such as gravel, uneven surfaces, and muddy roads, demonstrating strong environmental adaptability.
Feature 02
Full-Range All-Weather Operation
Designed for extreme conditions, it operates in temperatures from -40°C to +55°C and adapts to high-altitude environments up to 5,000 meters.
Feature 03
Comprehensive Visual Perception
Equipped with multiple LiDARs, surround-view cameras, and a high Computational Power module, the robotic dog achieves 360° environmental awareness.
Feature 04
Energy Support
Features 30-second rapid battery replacement and autonomous charging for long-term, stable operation.
Core Functions of the Quadruped Robotic Dog
Function 01
Sensor-control fusion reinforcement learning Control
Enables adaptive motion across all terrains.
Function 02
Patrol Navigation
Leverages its advanced perception system for high-precision mapping and navigation in indoor/outdoor environments.
Function 03
Standardized Interfaces
Supports universal communication and electrical interfaces for broad industrial applications.
Function 04
Autonomous Charging
Compatible with custom charging stations or charging rooms for 24/7 operation.
Function 05
Multi-Network Connectivity
Supports WiFi, 5G, and self-sufficient mesh radio.
Main Application Scenarios of Quadruped Robot Dog
Scenario 01
Patrol and inspection
The robotic dog can be upgraded with Patrol or non-lethal intervention payloads to serve as a security patrol robot. It replaces manual labor in daily patrols, conducts uninterrupted security-fire inspections for major events, and assists patrol officers or traffic personnel in missions.
Scenario 02
Emergency Rescue
Equipped with emergency modules, it transforms into a rescue robot. It collaborates with rescue teams in post-disaster environments (e.g., ruins) for disaster assessment, victim search, and rescue operations, enhancing efficiency while protecting human responders.
Scenario 03
Industrial Inspection
Upgraded with inspection modules, it performs tasks such as meter reading, liquid leak detection, and infrared temperature monitoring in chemical plants, substations, and other industrial settings. It enables 24/7 operation, reducing labor costs and improving operational efficiency.
Technical Specifications of Quadruped Robot Dog Platform
| SNOW MASTIFF Q20A | ||
| Overall Dimensions | Crawling dimensions (L × W × H) | 1105mm × 490mm × 295mm |
| Standing dimensions (L × W × H) | 1000mm × 490mm × 600mm | |
| Total weight | 58kg | |
| Electrical Parameters | Battery capacity | 22.4Ah (measured at 25℃) |
| Battery rated voltage | 72V | |
| Charger input | 200V~240V | |
| Charger output | 84V/8A | |
| Charging duration | 2.5h | |
| External power interface | 72V(BAT) | |
| External communication interface | Ethernet; WiFi | |
| Autonomous charging function | Supported | |
| Motion Parameters | Maximum speed | 2.5m/s (extreme test data) |
| Maximum walking speed | 1.0m/s | |
| Maximum climbable slope | ±30° | |
| Maximum climbable step height | 20cm | |
| Maximum climbable step angle | ±40° | |
| Payload endurance time | 2.5h | |
| Payload | 15kg | |
| Sensor Parameters | Solid-state LiDAR | 4 Pieces |
| Visible light camera | 5 Pieces | |
| Other optional modules | Dual-sensor gimbal; RTK | |
| Environmental Parameters | Protection rating | IP67 |
| Operating temperature | -40℃ ~ 55℃ | |
Frequently Asked Questions (FAQ)
Q
What is the maximum speed and payload capacity of the SNOW MASTIFF Q20A?
The SNOW MASTIFF Q20A has a maximum walking speed of 1.0m/s (with extreme test data reaching up to 2.5m/s) and supports a maximum payload capacity of 15kg.
Q
Can the quadruped robotic dog operate in extreme weather conditions?
Yes, it is designed for full-range all-weather operation. It can operate in temperatures ranging from -40°C to +55°C, adapt to high-altitude environments up to 5,000 meters, and features an IP67 protection rating.
Q
How does the robotic dog perceive its surroundings?
It achieves comprehensive 360° visual perception through an advanced perception system equipped with 4 solid-state LiDARs, 5 visible light cameras, and a high Computational Power module.
Q
What are the battery specifications and charging capabilities?
The robotic dog features a 22.4Ah battery capacity (measured at 25℃) with a rated voltage of 72V. It supports autonomous charging, a charging duration of 2.5 hours, and a 30-second rapid battery replacement feature.
Q
What connectivity options are supported by the platform?
The platform supports multi-network connectivity including WiFi, 5G, and a self-sufficient mesh radio. It also has physical external communication interfaces for Ethernet and WiFi.
Q
What are the primary applications for this quadruped robot?
The primary application scenarios include security patrol and inspection (replacing manual daily security/fire patrols), emergency rescue (collaborating with rescue teams in post-disaster areas), and industrial inspection (meter reading, leak detection, and thermal monitoring in chemical plants and substations).
