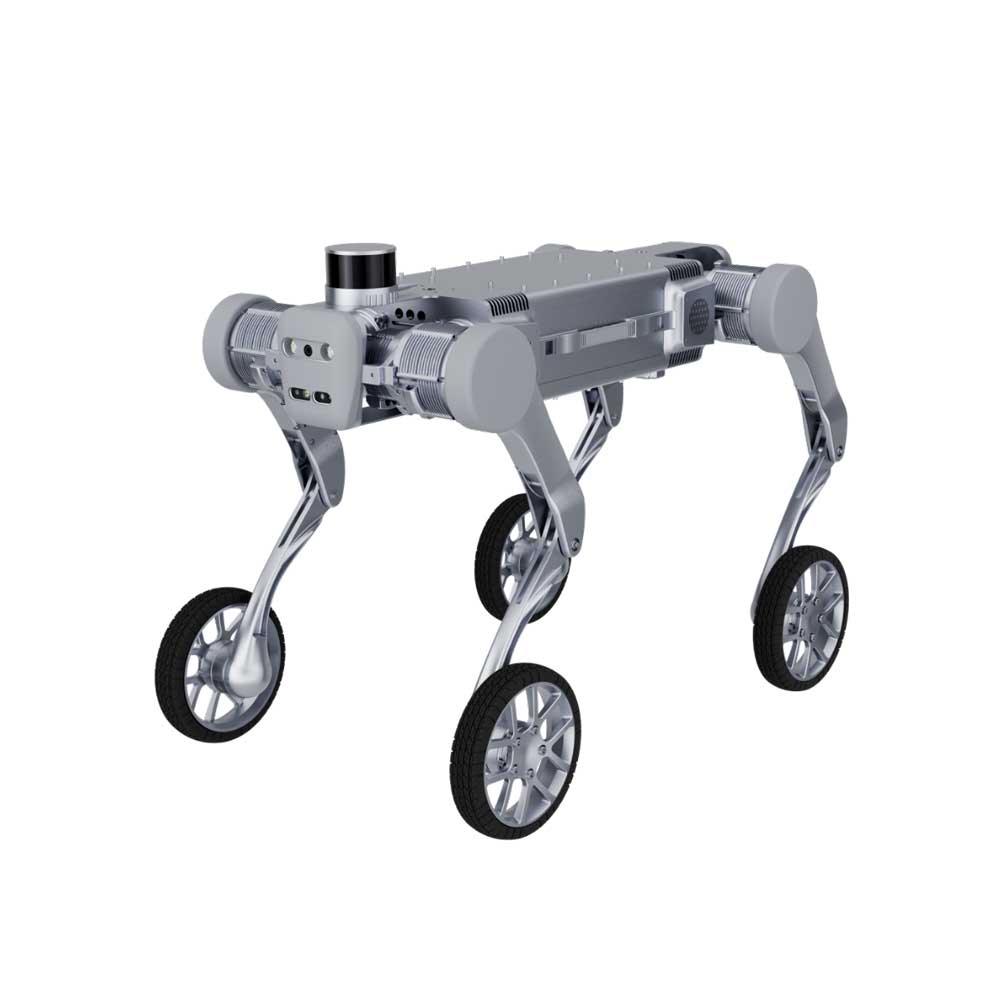

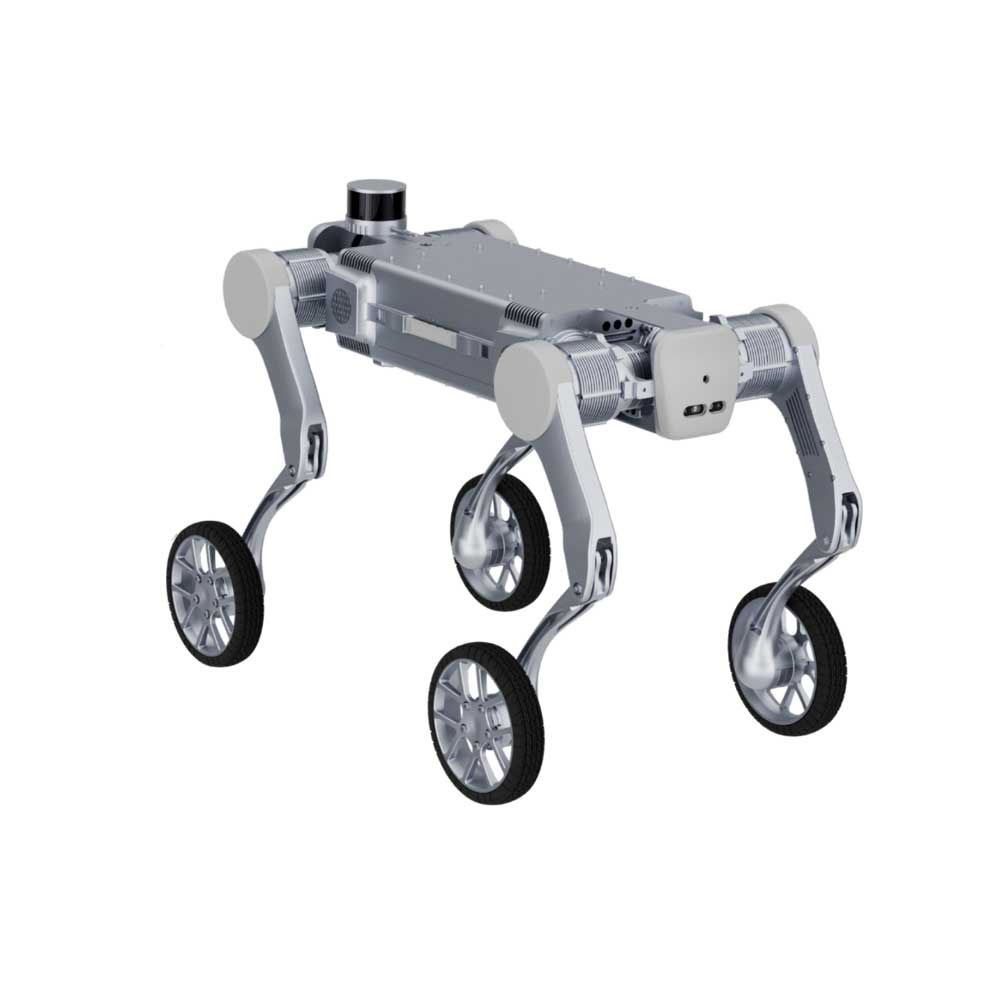

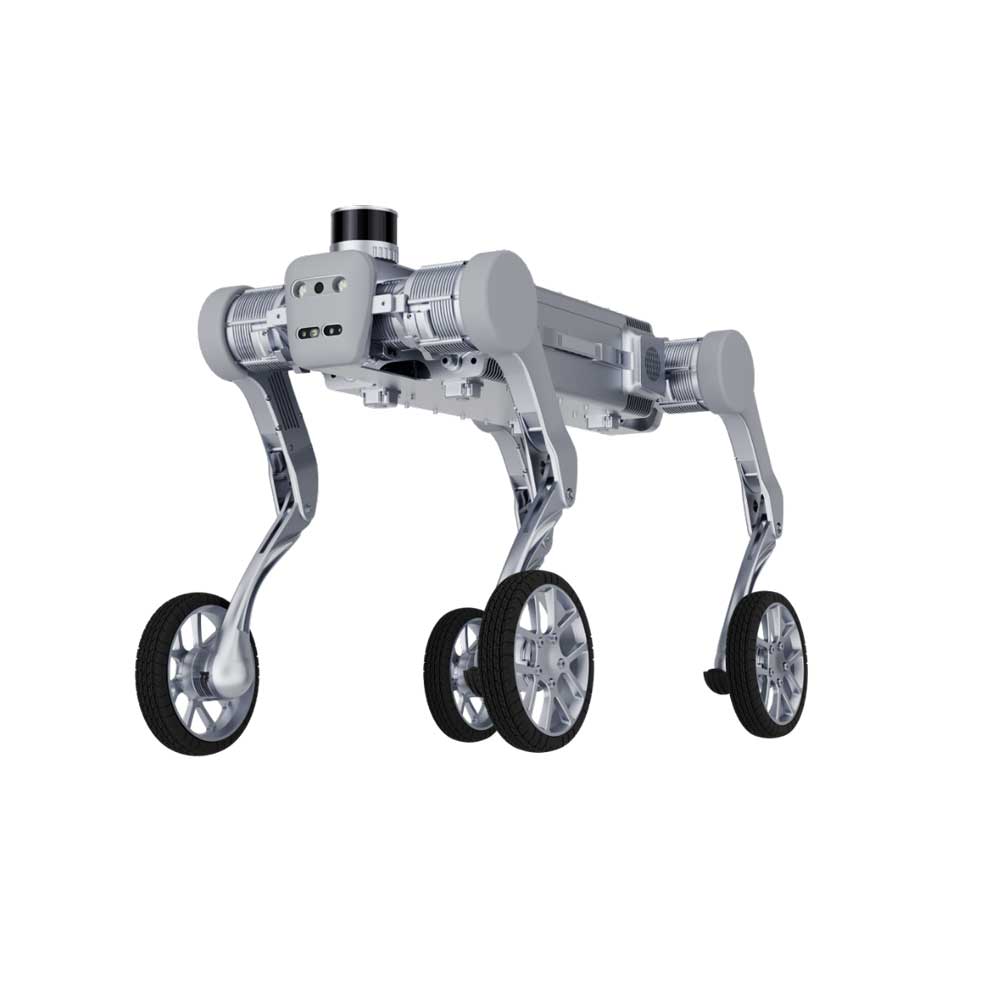

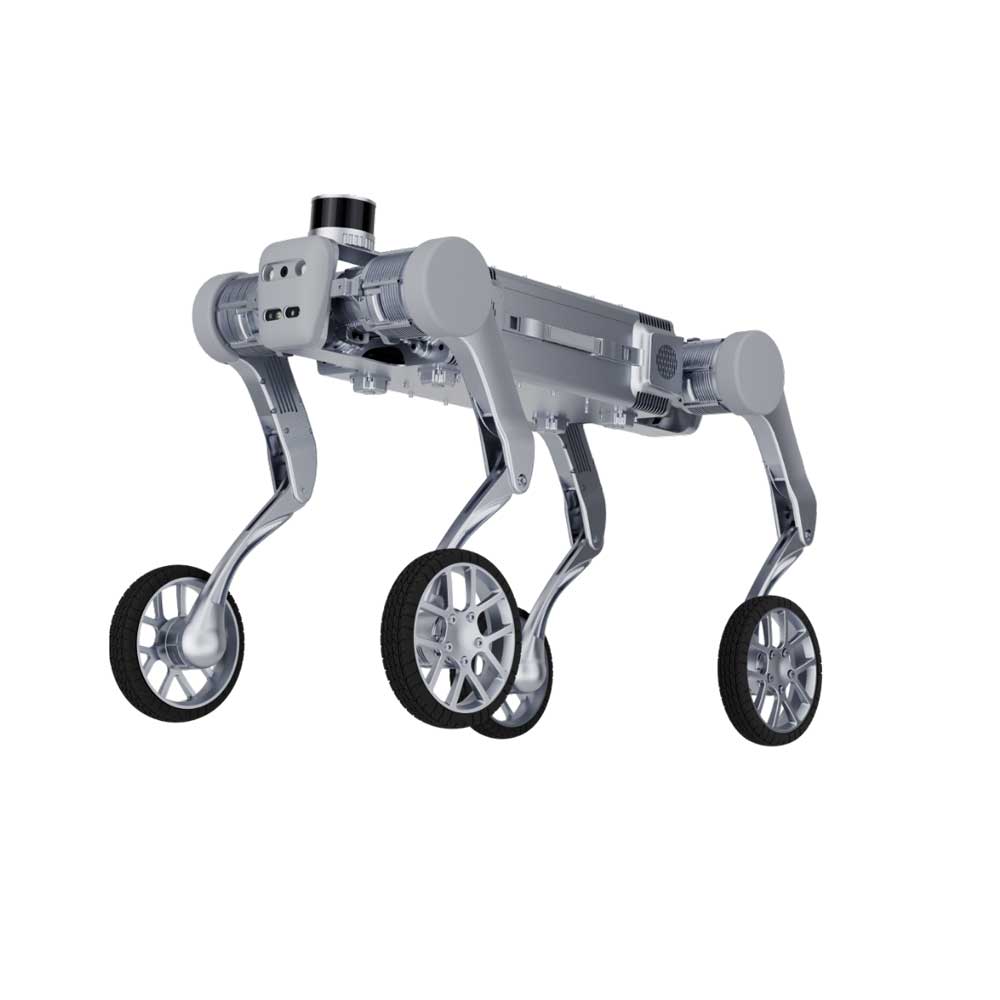

Industrial Grade Quadruped Wheeled Robot Dog from China Suppliers - High-Performance Factory Solution for Various Applications
Core Advantage of Quadruped Wheeled Robot dog
✓
This quadruped wheeled robot dog robot is based on EtherCAT motor communication protocol, accurate and high speed;
✓
The quadruped wheeled robot dog is based on the reinforcement learning MLP perceptual operation and control system, high robustness;
✓
The quadruped wheeled robot dog adopts 18650 package imported high-capacity battery core, safe and durable;
✓
Based on multi-sensor fusion cloud centralized control design, simple integration.
Based on the RL model algorithm for quadruped wheeled robot dog [motion control program] continuous optimization and enhancement, to provide quadruped wheeled robot dog [machine structure and function] customization services, to deepen the industry cooperation.
Technical Specifications of Quadruped Wheeled Robot dog
| Quadruped wheeled Robot (General Type) | Gazella-G7 Pro (General Wheeled Type) | ||
|---|---|---|---|
| Robot Body | Basic Specifications | Bare machine dimensions | ≤1000×480×650mm |
| Bare machine weight | ≤65kg (with Battery) | ||
| Position & orientation perception | 0~500Hz | ||
| Environmental perception | Depth Vision Camera ×1 Wide-Angle Camera ×1 |
||
| Remote control method | Dedicated image control link | ||
| Motion control host | I5+DDR5 16G+256GB | ||
| Joint Performance | Joint torque | Peak ≤350Nm | |
| Hub torque | Peak ≤50Nm | ||
| Motor communication | EtherCAT (High-speed precise synchronization) | ||
| Mobility | Stable travel speed | 0~5.98m/s (Rough terrain walking) | |
| Stable stair climbing | ≥25cm (Forward / Reverse up and down stairs) | ||
| Stable slope climbing | ≥30° (Forward / Reverse up and down slope) | ||
| Motion load capacity | ≥20kg | ||
| Continuous endurance | ≥4.5h/15km (Capacity: 42Ah) | ||
| Working Environment | Operating temperature | -20℃~60℃ | |
| Protection class (IP65) | IP65 | ||
| Explosion-proof class | —/— | ||
| Application Integration | Application Modules | Navigation & positioning | Laser Radar + Beidou Positioning |
| Wireless communication | 2.4+5.8GHz wireless WIFI/4G/5G/MESH self-organizing network, etc. | ||
Frequently Asked Questions (FAQ)
Q1: What communication protocol does the quadruped wheeled robot dog use?
The quadruped wheeled robot dog is built on the EtherCAT motor communication protocol, which ensures high-speed, precise synchronization and control.
Q2: What is the maximum mobility capability of the Gazella-G7 Pro?
The Gazella-G7 Pro can travel at speeds of up to 5.98 m/s on rough terrain, climb stairs of ≥25cm (both forward and reverse), and navigate slopes of ≥30°.
Q3: How long does the battery of the robot dog last?
It features a high-capacity 42Ah battery pack using imported 18650 cells, providing a continuous endurance of ≥4.5 hours and a travel range of up to 15 km.
Q4: What is the payload capacity and operating temperature range?
The robot dog supports a motion load capacity of ≥20kg and is designed to operate in extreme environments ranging from -20℃ to 60℃.
Q5: Can the robot dog be customized for specific industrial applications?
Yes, we provide customization services for both the machine structure and functions, alongside continuous optimization of the motion control program using RL model algorithms.
