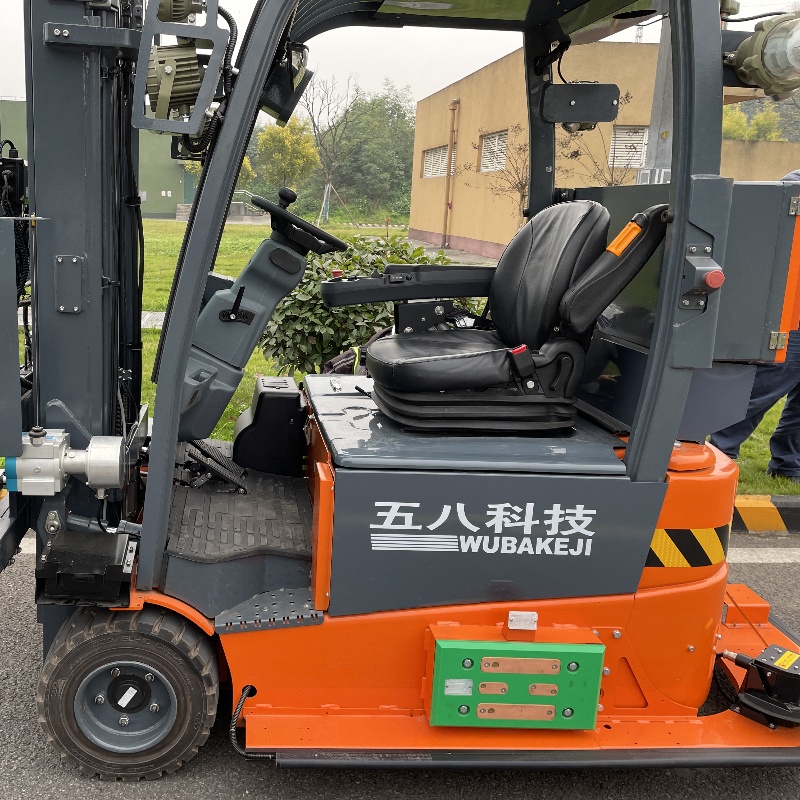

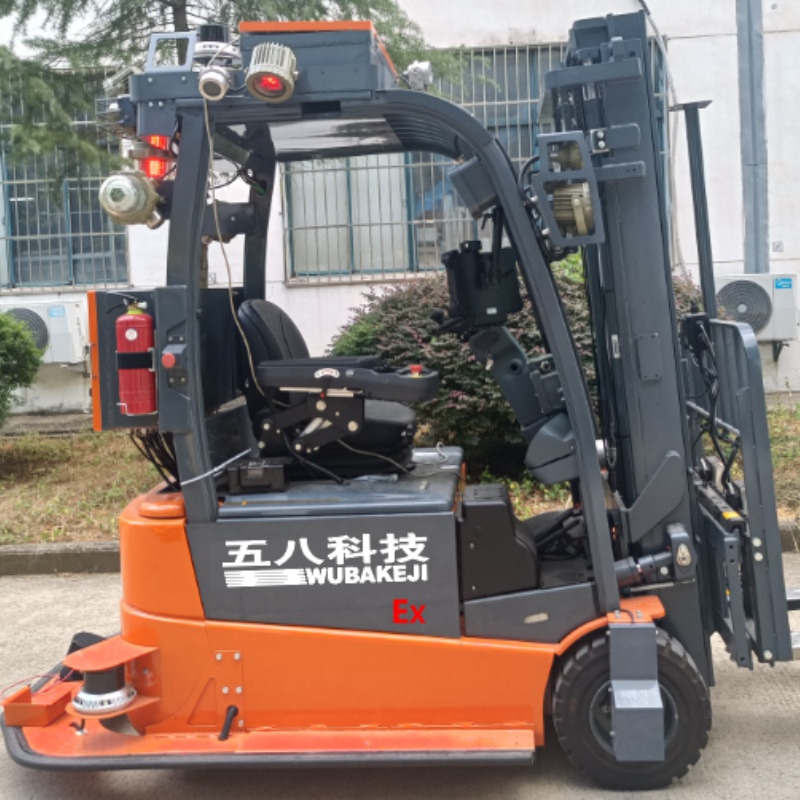

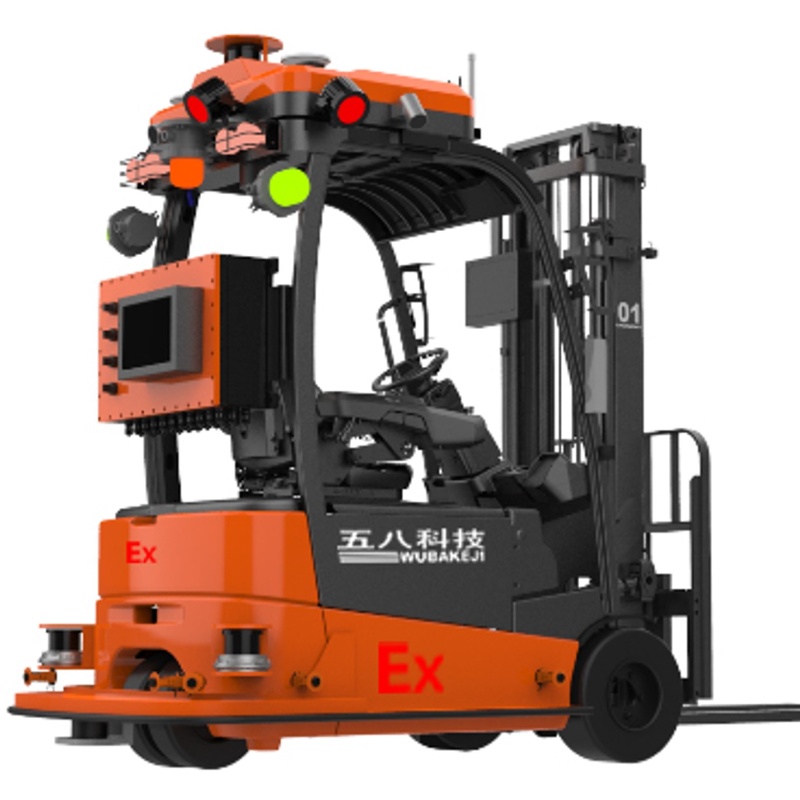

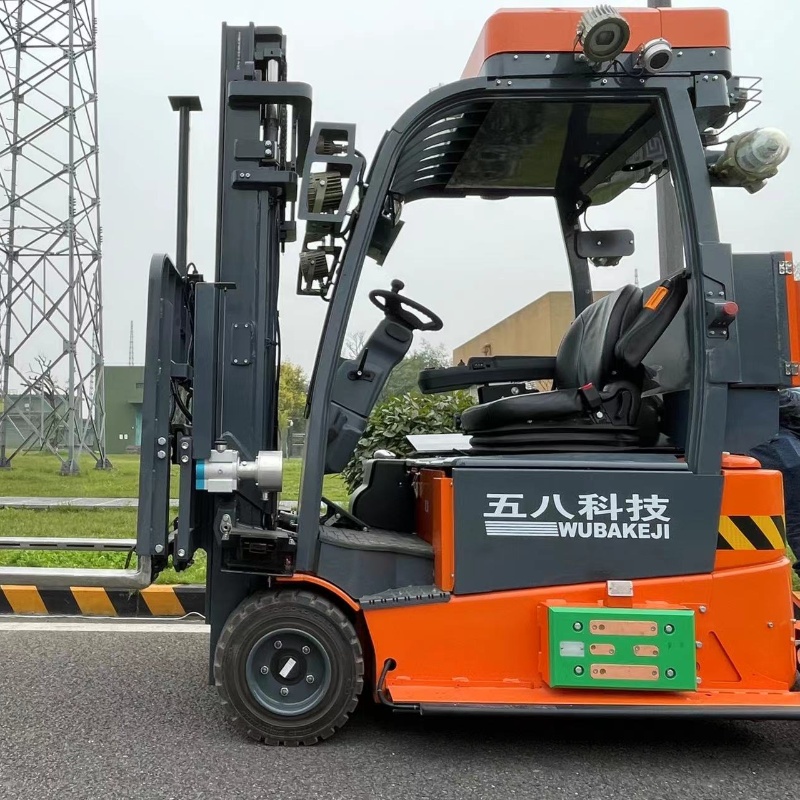

High Precision Outdoor Explosion-Proof Forklift AGV from China Suppliers and Factory for Safe Cargo Transfer
Core advantages of outdoor explosion proof forklift AGV
Outdoor explosion-proof forklift AGV adopts indoor and outdoor common solid conductive rubber tires, which is convenient for forklifts to run frequently on outdoor asphalt pavement, reduces the loss of body tires, reduces the frequency and cost of vehicle maintenance, and improves the overall operating efficiency of the vehicle.
Outdoor explosion-proof forklift AGV with autonomous positioning and navigation, using multi-line LIDAR, high-precision navigation and other positioning and navigation solutions to meet the specification requirements to achieve positioning and navigation functions.
Outdoor explosion-proof forklift AGV with unmanned function: the vehicle can be based on actual demand, while supporting indoor and outdoor self-driving, and can be smoothly switched between the two scenes.
Outdoor explosion-proof forklift AGV with autonomous perception of obstacle avoidance: the ability to autonomously perceive the logistics and transportation scene of people, cars, objects and other obstacles affecting the safety of vehicle operation, and can be parked in a timely manner.
Outdoor explosion-proof forklift AGV with driving record function: the vehicle has a driving record function, record the driving process of driving status, abnormal conditions, etc., the relevant image data localized storage, support for copying and access.
Outdoor explosion-proof forklift AGV 's forks have lifting, panning and tilting functions, and the forks have high-precision closed-loop control functions in the vertical direction (up and down) and horizontal direction (left and right).
Outdoor explosion-proof forklift AGV with automatic cargo identification and pallet position function: according to the project on the empty and full state of the cargo identification needs, forklift trucks need to have automatic cargo identification, ready to fork the pallet's position and direction to obtain, and to achieve the angle and position of the pallet offset within a certain range of the automatic fork picking.
Outdoor explosion-proof forklift AGV with human-computer interaction: with vehicle-mounted human-computer interaction platform, able to interact with the task through the vehicle touch screen, to achieve the graphical touch-screen issued tasks; with vehicle-mounted information display interaction, able to display the task and the vehicle information to the user; at the same time, instrumentation display content requirements are: the battery power of the remaining power status, the battery will display the warning of the remaining low battery; the vehicle from the equipment The display of the cumulative driving time from the time the vehicle is driven from the factory; in the event of an abnormality in the vehicle's electronic control system, the display can have maintenance instructions.
Technical Specifications of Outdoor Explosion Proof Forklift AGV
| Basic Parameters | Dimensions | 3600*1400*2400mm(L*W*H) |
| Rated lifting capacity | 2000kg | |
| Rated lifting height | 3300mm | |
| Static wading depth | ≤120mm | |
| Dynamic wading depth | ≤30mm | |
| Vertical obstacle clearance | ≥30mm | |
| Minimum distance of fork surface from the ground | 90±3 | |
| Navigation laser height above ground | 2300mm | |
| Navigation Method | 3D-SLAM Laser navigation+IMU High-precision inertial navigation (multi-fusion navigation) | |
| Positioning and navigation accuracy | ≤±3cm | |
| Fixed-point parking accuracy | ≤±3cm | |
| Fork size | 40mm*122mm*1220mm(Thickness*Width*Length） | |
| Explosion-proof grade | Plus core device temperature monitoring | |
| Protection grade | IP65 | |
| Speed | 7km/h | |
| Minimum turning radius | About 1950mm | |
| Maximum climbing grade | 15% | |
| Minimum ground clearance | 90mm(Door frame）/100mm（vehicle body） | |
| Lifting speed | Full/empty load: 310/530mm/s | |
| Descent speed | Full/empty load: 400/500mm/s | |
| Safety Protection | Emergency stop switch, 1 control box, 1 cab seat armrest, 1 on each side of the rear column of the overhead guard, can be customized | |
| Tire and wheel | Tire type: Black solid static conductive rubber tire | |
| Battery Type | Battery Type | Explosion-Proof Maintenance-Free Lead-Acid Battery |
| Rated Working Time | ≥4h | |
| Charging Time | ≤ 11h | |
| Battery Life / Charging time | ≥800 times | |
| Charging method | Manual, automatic charging (docking method: telescopic brush block) | |
Frequently Asked Questions (FAQ)
What navigation system does this explosion-proof AGV use?
It utilizes a multi-fusion navigation method consisting of 3D-SLAM Laser navigation combined with IMU High-precision inertial navigation, ensuring a high positioning and parking accuracy of ≤±3cm.
Can the forklift AGV operate in outdoor wet or uneven terrains?
Yes, it features black solid static conductive rubber tires suitable for frequent outdoor asphalt pavement runs. It supports a static wading depth of ≤120mm, dynamic wading depth of ≤30mm, and a vertical obstacle clearance of ≥30mm.
What battery type and runtime can be expected?
The vehicle is powered by an Explosion-Proof Maintenance-Free Lead-Acid Battery, providing a rated working time of ≥4 hours. It requires ≤11 hours for a full charge and has a battery life cycle of ≥800 charges.
Does the AGV support automatic pallet and cargo detection?
Yes, the AGV has built-in automatic cargo identification and pallet position functions. It can identify the empty/full state of the cargo, locate the pallet's position and direction, and adjust for angle offsets within a certain range for automatic picking.
What are the safety protection features installed on the AGV?
The AGV includes emergency stop switches, a control box, a cab seat armrest, and safety sensors on each side of the rear column of the overhead guard. It also features autonomous perception for obstacle avoidance to park when encountering people, cars, or objects.
What is the protection and explosion-proof capability of the vehicle?
The AGV features an IP65 protection grade and includes core device temperature monitoring to ensure safe operation in hazardous environments.
