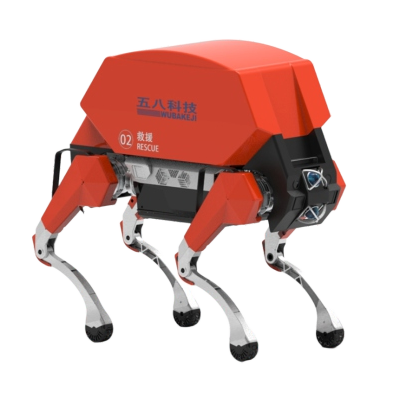

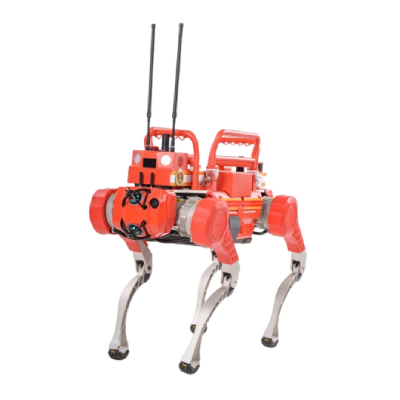

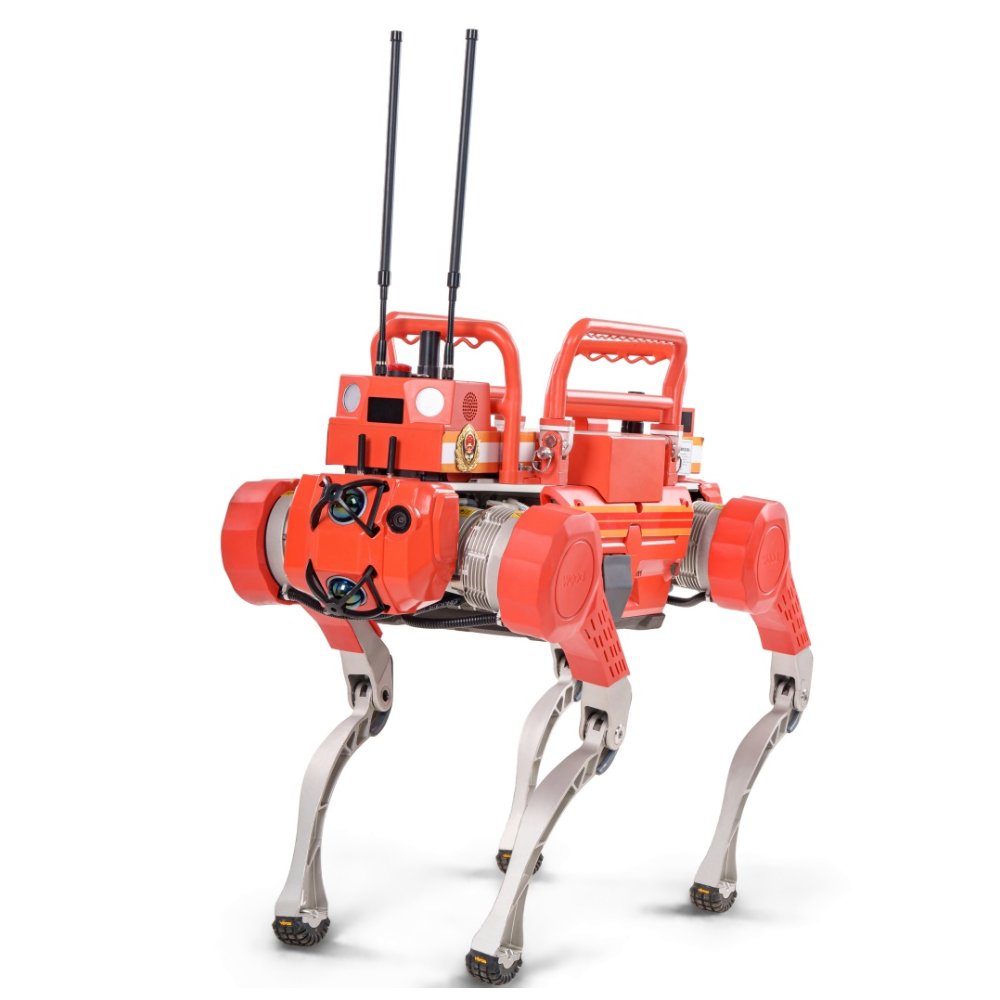

Emergency Support Quadruped Robot for All-Terrain Rescue and Material Transport
Key Features
A11-Terrain Mobility,Built for Extreme Environments
A biomimetic quadruped structure combined with advanced motion control algorithms enables smooth traversal over rubble,gravel,mud,steep slopes,and stairs.
Modular Payload System for Flexible Mission Adaptation

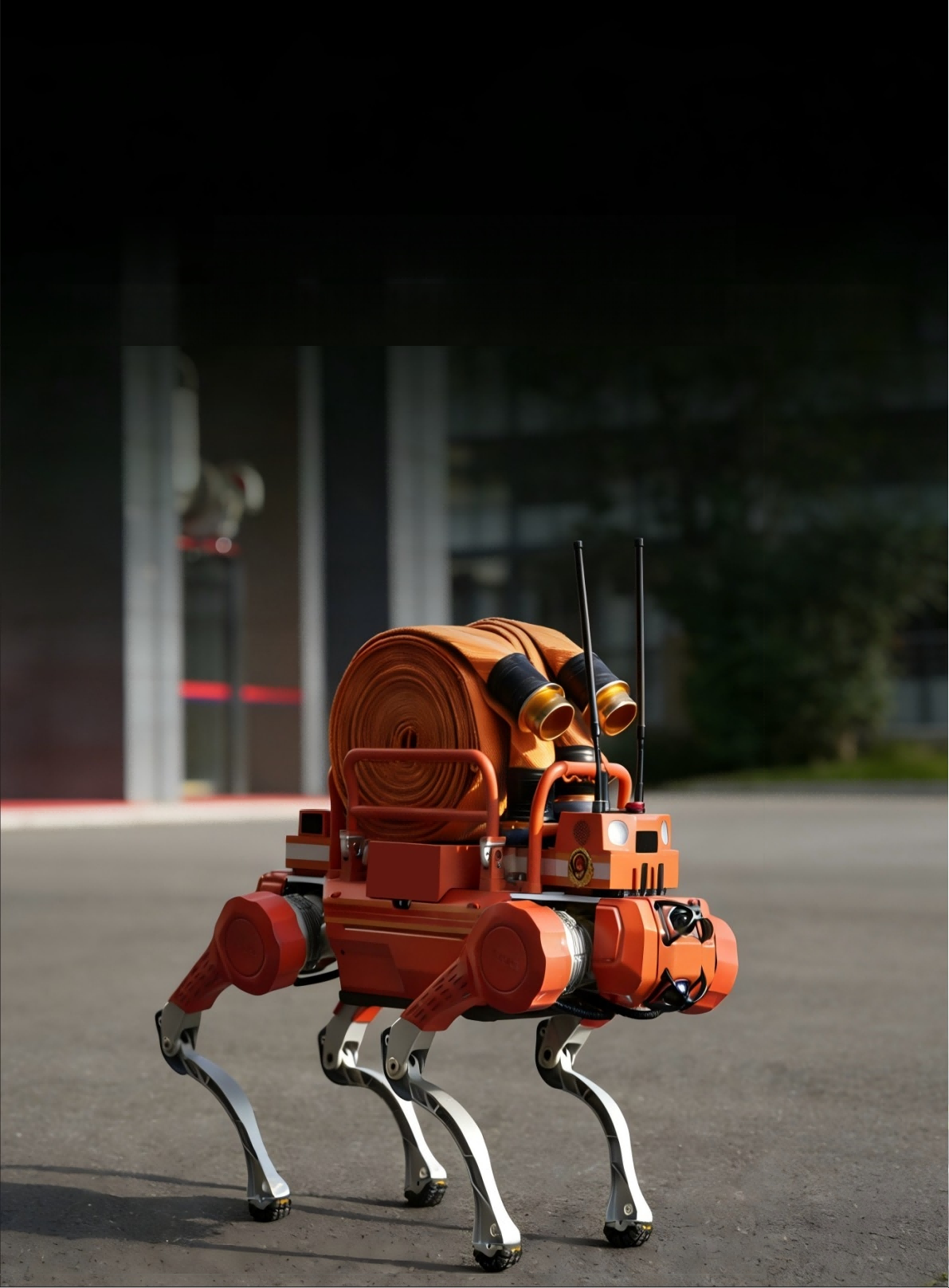

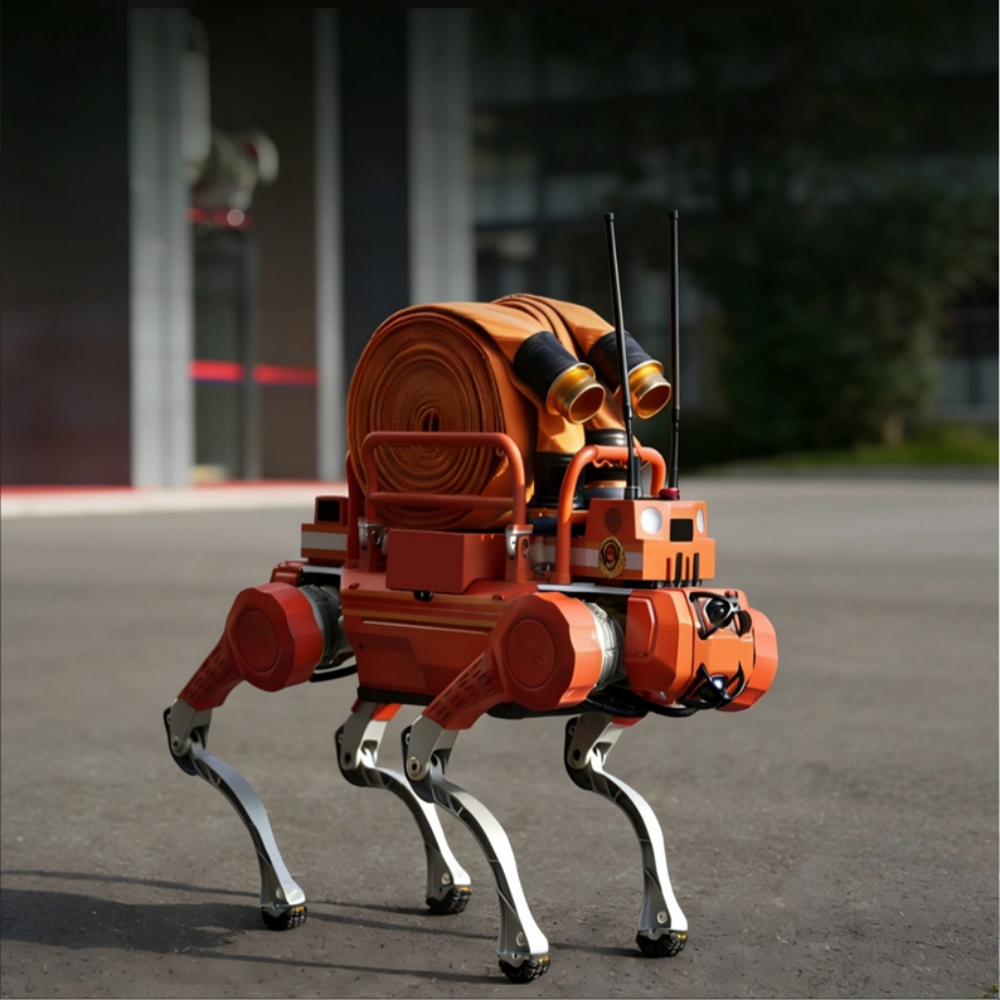

Equipped with material support racks or cargo boxes and quick-fastening straps, allowing rapid loading,uploading and secure mounting of tools such as demolition equipment,gas cylinders,and fire hoses,meeting the diverse requirements of rescue material transport.
Intelligent Following,Precise Obstacle Avoidance
Integrated autonomous following system enables stable personnel tracking and dynamic obstacle avoidance in complex environments,enhancing coordinated operations.
High Payload Capacity,Long-Endurance Operation
Designed for long-duration and long-distance material transport tasks,ensuring continuous support for ongoing rescue missions.
 |
 |

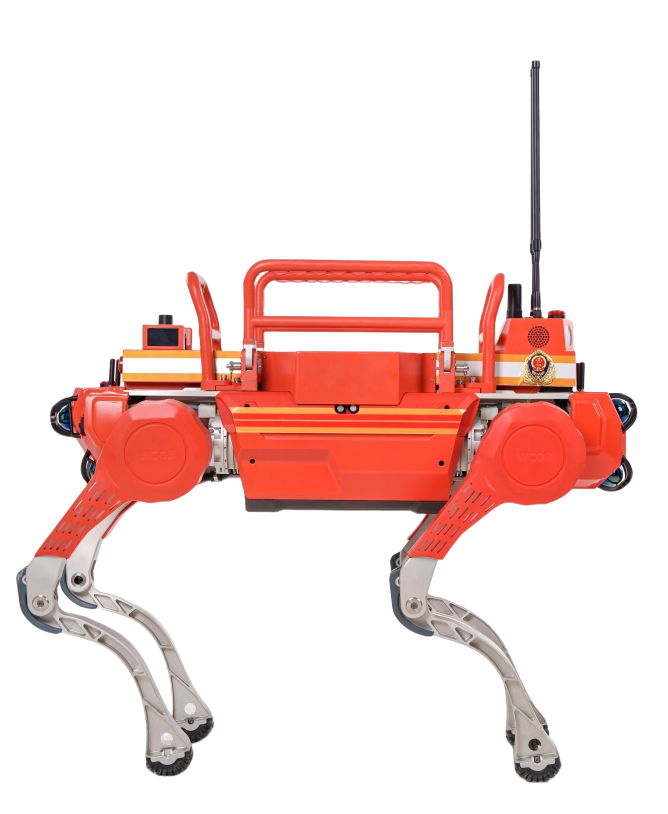

APPLICATION SCENARIOS
|
Assist in rubble rescue and transport key tools Assist in forest firefighting,transport firefighting supplies Substitute personnel enter the chemical accident site to deliver materials Patrol between multi-story buildings and achieve cross-area material delivery |
|
Product Parameters
| Dimensions (Standing) | 1000mm(L) × 460mm(W) × 965mm(H) |
| Weight | 65Kg |
| Operating Temperature | -20℃ ~ 50℃ |
| Operating Humidity | 20%RH ~ 80%RH |
| Operating Time | ≥ 3h |
| Battery Capacity | 22.4Ah |
| Auto Charging | Supported |
| Protection Rating | IP65 |
| Max Speed | 2.9m/s |
| Terrain Adaptability | Suitable for gravel, rubble, ruins, stairs, tunnels, uneven terrain, mud, etc. |
| Max Slope Angle | ≥ 40° |
| Stair Climbing Height | ≥ 16 cm |
| Audio Module | Microphone & intercom (two-way audio) |
| Communication Module | 4G / Wi-Fi / radio |
| Communication Range | ≥ 1km |
| Sensor Configuration | LiDAR, RGB camera, UWB |
| Max Payload Capacity (Standing) | 50kg |
| Rated Payload | 12kg |
| Endurance (with Payload) | ≥ 3 hours with 10 kg payload |
| Payload Mounting | Material support rack / cargo box; supports carrying or mounting options |
| Emergency Stop | Equipped with both hardware and software emergency stop |
| Controller Dimensions | ≤ 380 mm (L) × 240 mm (W) × 48 mm (H) (excluding joystick height) |
| Display Size | 10.1 inches |
| Display Resolution | 1920 × 1200; touchscreen supported |
