Emergency Search and Rescue Robotic Dog by China Suppliers - Advanced Factory Solutions for Safety and Efficiency
Core Functions of the Emergency Search and Rescue Robotic Dog
Basic Functions

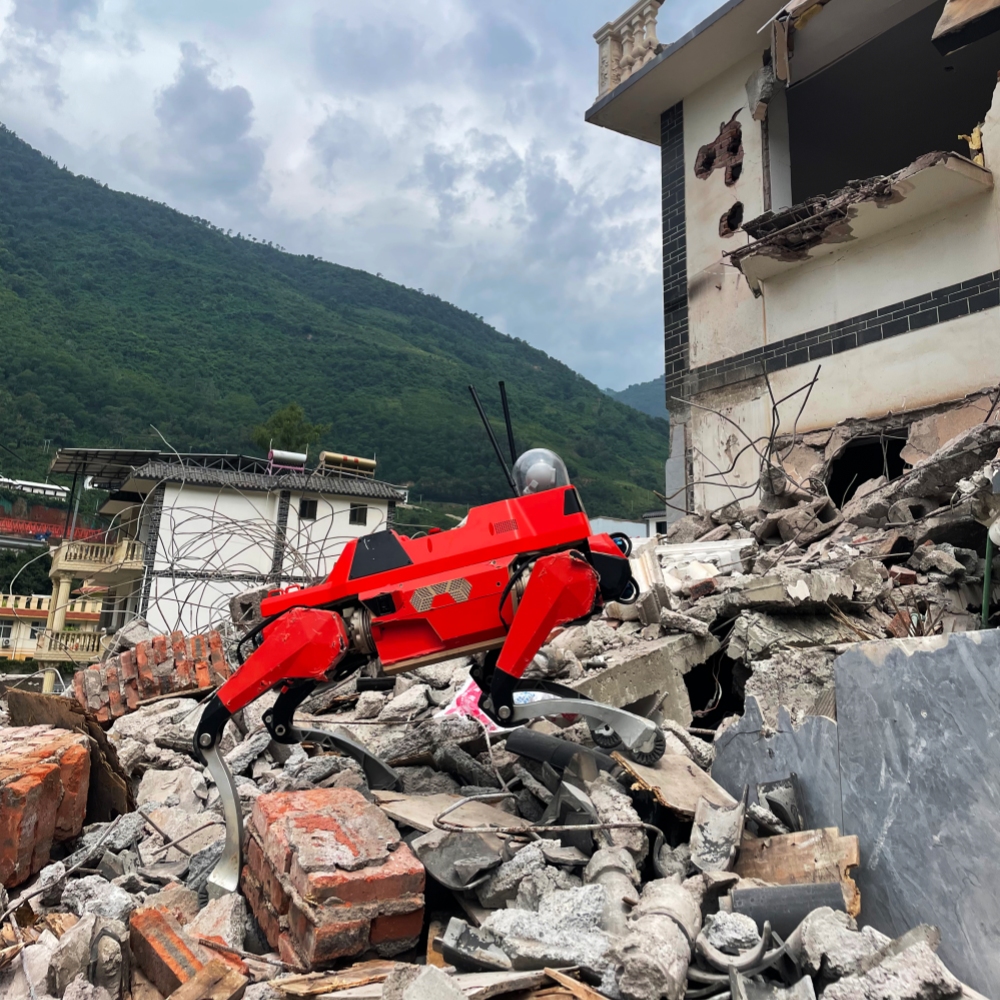

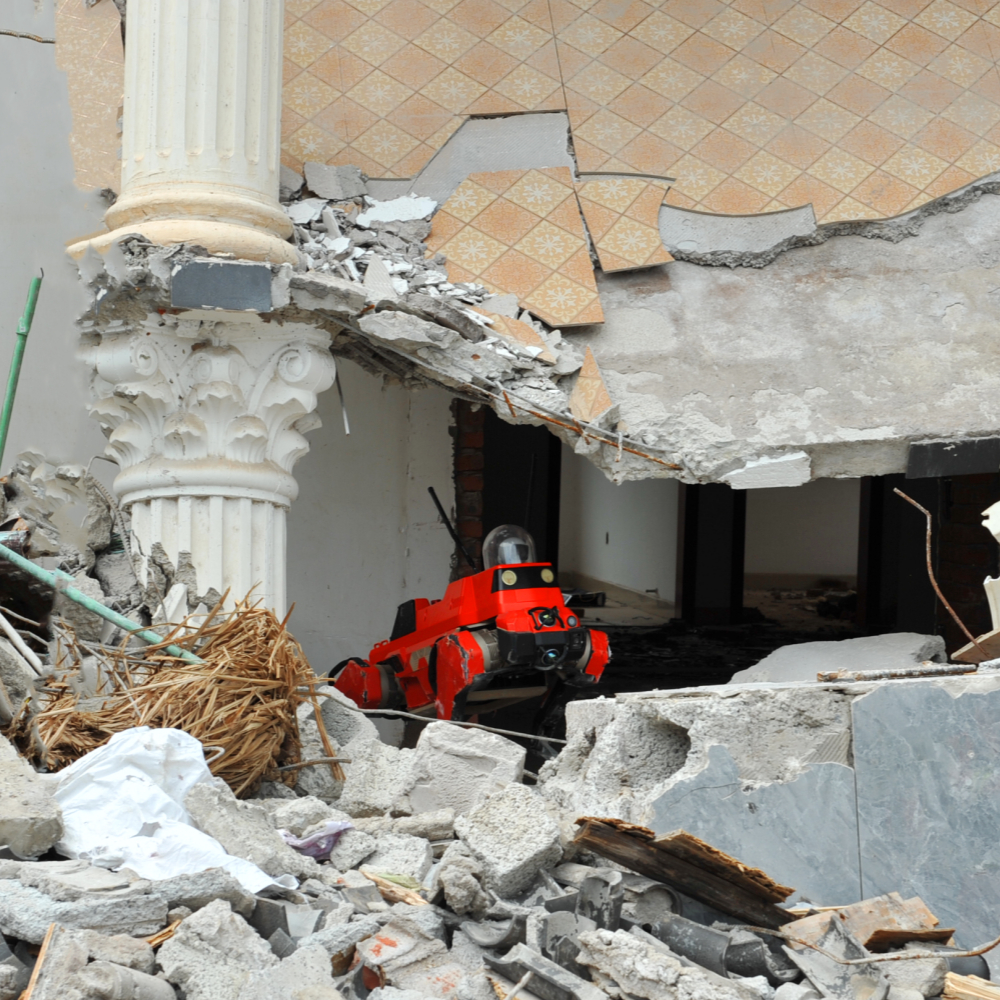

- Navigates complex terrains: staircases, debris, outdoor environments, paved roads, etc.
- Slope climbing (maximum slope ≥30°)
- Self-recovery (rollover correction within ≤7 seconds)
- Autonomous charging, obstacle avoidance, inspection, and optional autonomous following.
Advanced Environmental Perception
- Full-view real-time environmental perception (day/night) with temperature and humidity sensing.
- Multi-gas detection (combustible gases, oxygen, CO, H₂S, etc., response time ≤30 seconds).
- Intelligent audio-visual alerts: threat intrusion detection, heat source identification, fire point detection.
- Real-time 3D environmental mapping.
Operational Capabilities (Equipped with Robotic Arm)
- Manual/automatic grasping of small objects (≥0.5 kg).
- Dragging small objects (≥1 kg).
- Opening standard doors (round or bar-shaped handles).
Information Interaction
- Real-time communication, audio/video transmission, and auxiliary lighting.
- Integrated multi-information display.
- High-bandwidth communication capabilities in underground spaces.
Communication Functions
- Supports 5G public network communication or point-to-point control terminal communication.
- Expandable ad-hoc networking capabilities.

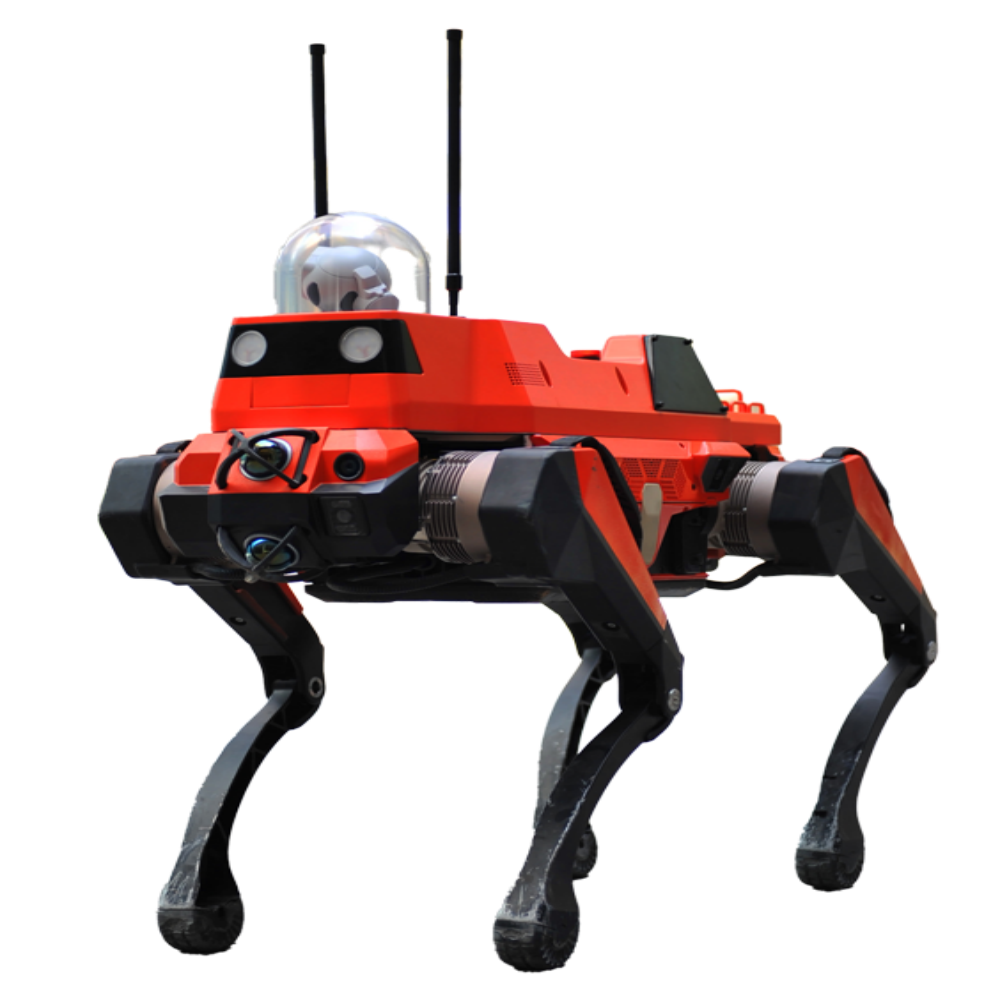

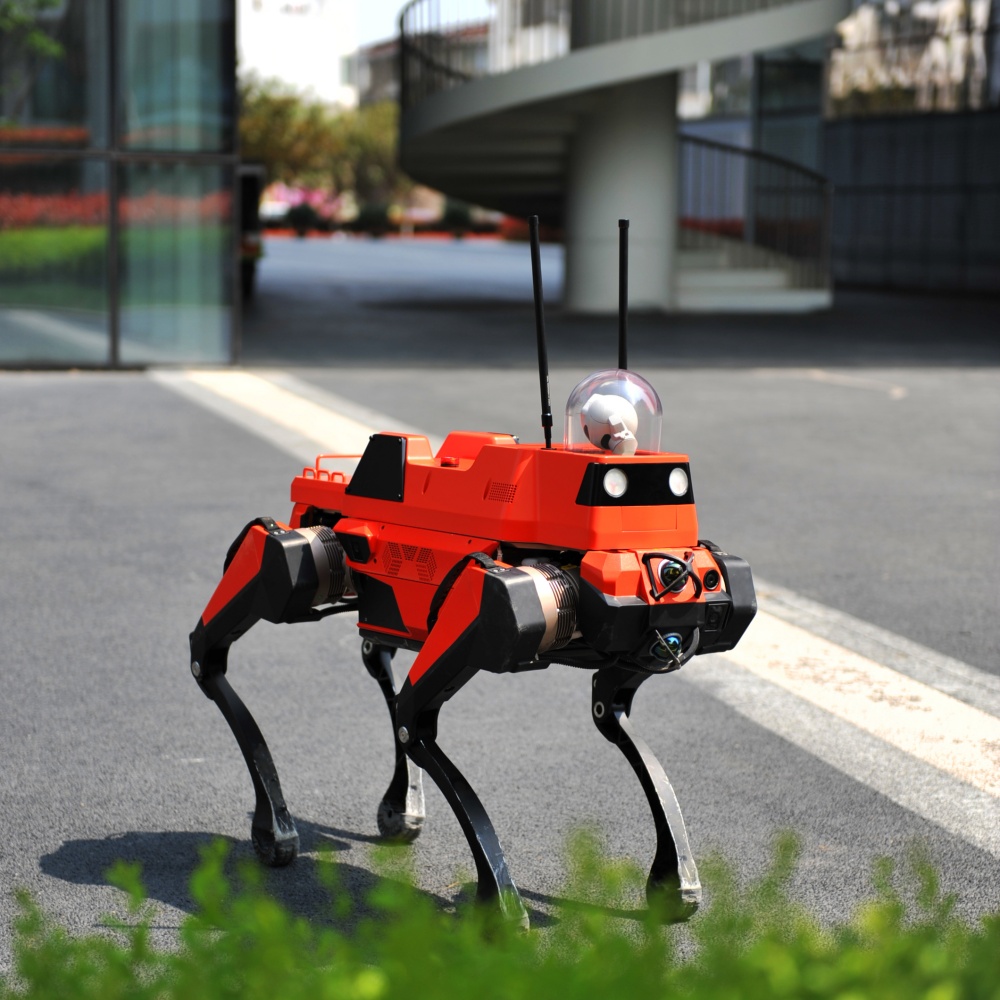

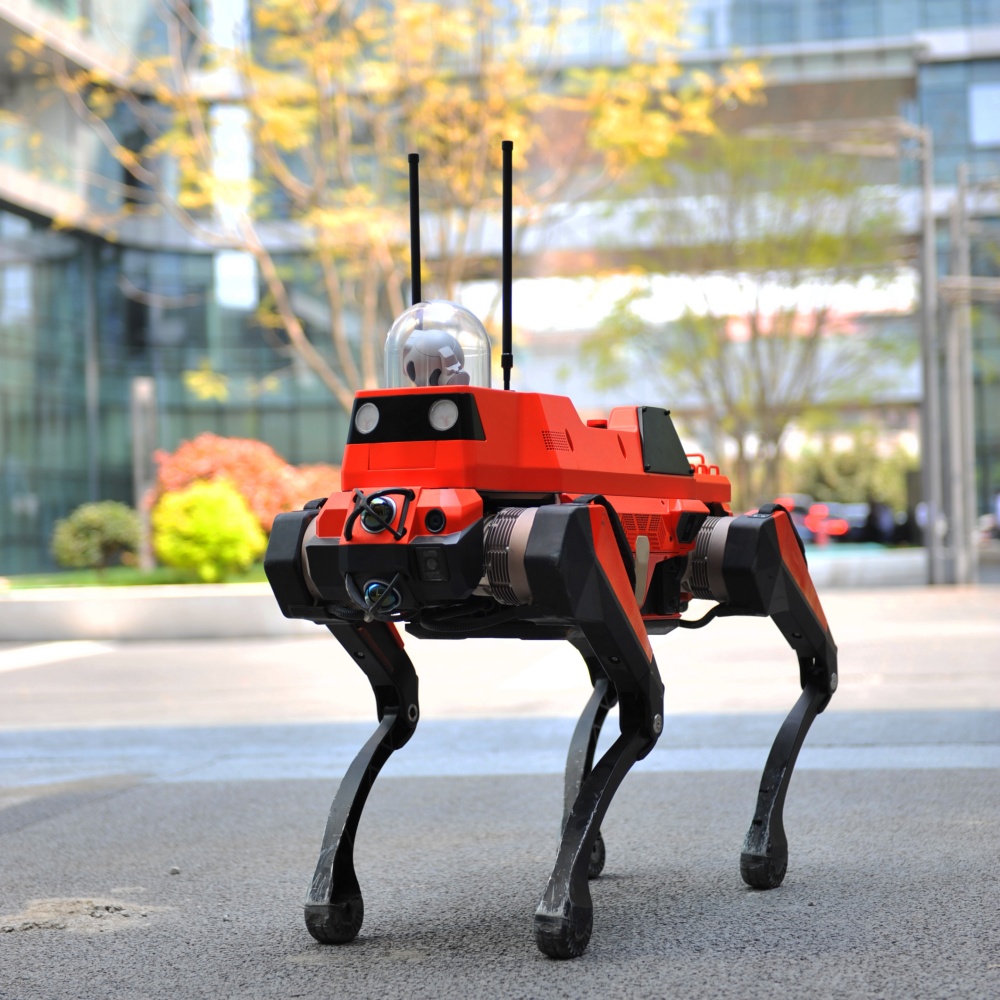

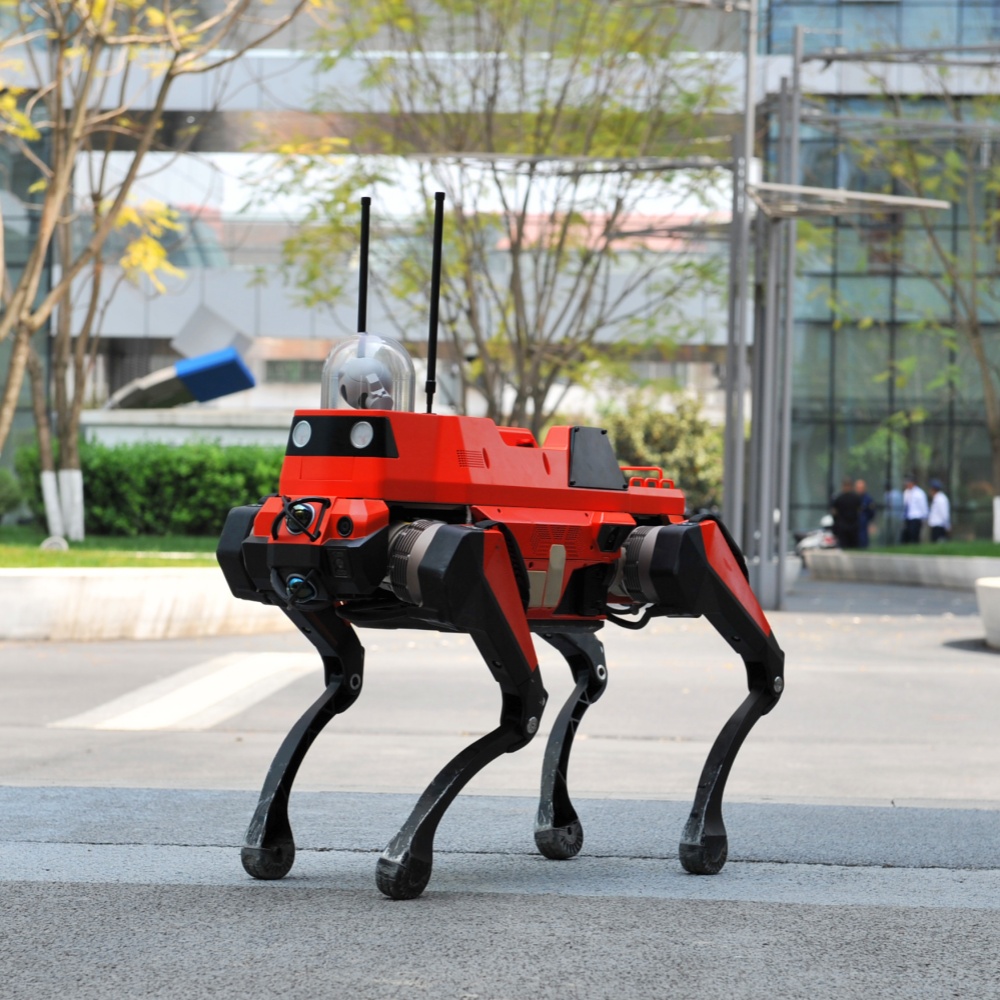

Technical Specifications of Quadruped Robot Dog Platform
| SNOW MASTIFF Q20A | ||
| Overall Dimensions | Crawling dimensions (L × W × H) | 1105mm × 490mm × 295mm |
| Standing dimensions (L × W × H) | 1000mm × 490mm × 600mm | |
| Total weight | 58kg | |
| Electrical Parameters | Battery capacity | 22.4Ah (measured at 25℃) |
| Battery rated voltage | 72V | |
| Charger input | 200V~240V | |
| Charger output | 84V/8A | |
| Charging duration | 2.5h | |
| External power interface | 72V(BAT) | |
| External communication interface | Ethernet; WiFi | |
| Autonomous charging function | Supported | |
| Motion Parameters | Maximum speed | 2.5m/s (extreme test data) |
| Maximum walking speed | 1.0m/s | |
| Maximum climbable slope | ±30° | |
| Maximum climbable step height | 20cm | |
| Maximum climbable step angle | ±40° | |
| Payload endurance time | 2.5h | |
| Payload | 15kg | |
| Sensor Parameters | Solid-state LiDAR | 4 Pieces |
| Visible light camera | 5 Pieces | |
| Other optional modules | Dual-sensor gimbal; RTK | |
| Environmental Parameters | Protection rating | IP67 |
| Operating temperature | -40℃ ~ 55℃ | |
Frequently Asked Questions
What is the maximum slope and step height the robotic dog can navigate?
The SNOW MASTIFF Q20A is designed to handle challenging terrains with a maximum climbable slope of ±30° and can climb steps up to 20cm in height at a maximum step angle of ±40°.
How does the robot recover if it rolls over during operation?
The robotic dog features an advanced self-recovery system, allowing it to perform automatic rollover correction and regain its standing position in 7 seconds or less.
What environmental conditions can the robotic dog operate in?
It is built for extreme environments with an IP67 protection rating, meaning it is highly dust and water-resistant. It can operate in temperatures ranging from -40℃ up to 55℃.
What are the payload capacity and battery specifications?
The SNOW MASTIFF Q20A supports a payload of up to 15kg. It is powered by a 72V, 22.4Ah battery that offers a payload endurance time of 2.5 hours and can be fully charged in 2.5 hours.
What sensors are integrated for environmental perception and gas detection?
The platform includes 4 solid-state LiDAR sensors, 5 visible light cameras, and supports dual-sensor gimbals or RTK. For environmental hazards, it detects combustible gases, oxygen, CO, H₂S, and other toxic gases within 30 seconds.
How does the robotic dog communicate and transmit data?
It supports 5G public network communication, point-to-point control terminal communication, and has expandable ad-hoc networking capabilities. It also offers high-bandwidth communication specifically optimized for underground spaces.
