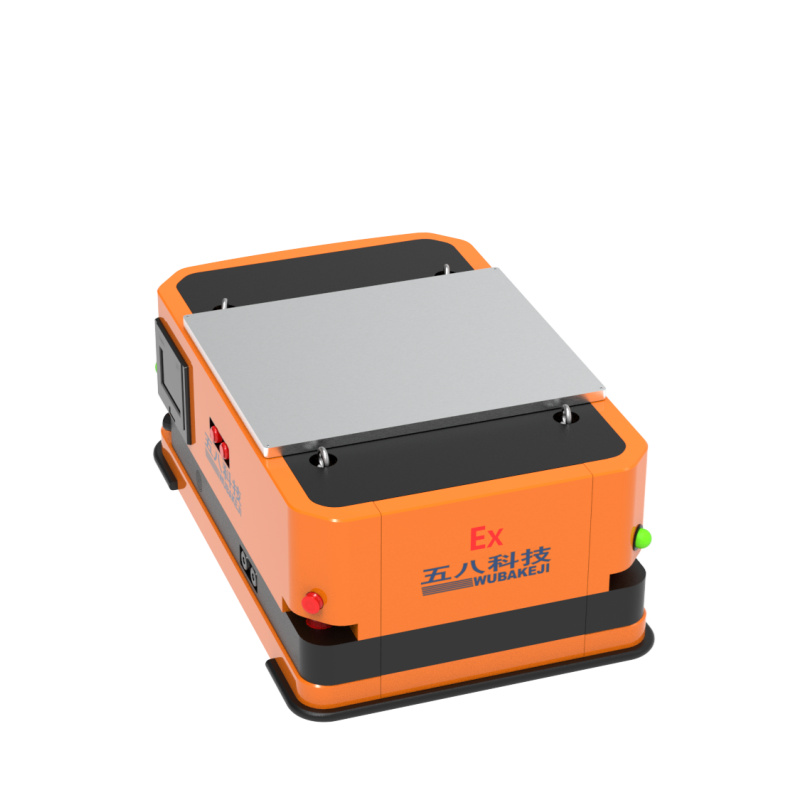

China Suppliers Factory Lift Type Explosion-Proof AGV for Hazardous Chemical Transportation
Core Technical Advantages of Explosion-Proof AGVs
This lifting-type explosion-proof AGV adopts military-grade explosion-proof design and systematic protection. Certified with Ex db eb ib IIB T4 Gb/Ex ib tb IIIC T130℃ Db explosion-proof ratings, it is suitable for Zone 1/2 explosive gas environments, Zone 21/22 explosive dust environments, and Temperature Class T4.
All core components of this lifting-type explosion-proof AGV are independently developed and certified by our company. The vehicle incorporates systematic protection mechanisms, including equipotential bonding, static electricity protection, temperature monitoring, intrinsically safe circuits, and leakage detection systems, ensuring maximum safety and reliability.
This lifting-type explosion-proof AGV utilizes high-precision navigation and intelligent scheduling, integrating LiDAR and visual fusion technology for ±10mm positioning accuracy. It supports seamless connectivity with WMS/MES systems. Our proprietary multi-AGV collaborative scheduling system enables efficient coordination of multiple explosion-proof AGVs.
Featuring omnidirectional mobility, this lifting-type explosion-proof AGV operates with high flexibility and efficiency. It achieves forward/reverse movement and in-place rotation without turning, making it ideal for complex spatial environments.
With a modular design, this explosion-proof AGV allows rapid integration of peripherals (e.g., temperature/gas detection devices) to expand functionalities such as inspection, material handling, and other industrial applications.
Technical Specifications
| Lifting Explosion Proof AGV | ||
| Basic Parameters | Dimensions | 1200*800*510mm(L*W*H) |
| Turning Diameter | ≤1500mm | |
| Self-weight | ≤500kg | |
| Rated Load | 500kg | |
| Lifting range | 0-80mm | |
| Mobile Speed | Maximum Speed at No Load | 1.1m/s |
| Speed at Rated Load | 1m/s | |
| Navigation and Positioning | Navigation Method | Laser SLAM |
| Stop Positioning Accuracy | ±10mm/±1° | |
| Battery Parameters | Battery Type | Explosion-Proof Maintenance-Free Lead-Acid Battery |
| Battery Capacity | 48V/33AH | |
| Rated Working Time | 8H | |
| Charging Time | 6-8H | |
| Charging Method | Manual/Automatic | |
| Battery Life | 500 times full Charges/Discharges | |
| Safety Protection | Emergency Stop | Supported |
| Acoustic and Optical Alarm | Supported | |
| Voice Broadcast | Supported | |
| Non-Contact Obstacle Avoidance | Explosion-Proof Laser Radar | |
| Contact Obstacle Avoidance | Explosion-Proof Safety Edge | |
| Other Function | Control Mode | Supports Manual, Automatic, Remote Control, etc. |
| Communication Method | Infrared Communication/WIFI | |
| Driving Function | Forward/Backward + Rotation in Place + Arc Turning | |
| Passing Performance | Crossing furrow capability | ≤30mm |
| Obstacle Height | ≤5mm | |
| Slope Performance | ≤3° | |
| Environmental Parameters | Operating Temperature | -10~40℃ |
| Noise | ≤75dB | |
| Applicable Area | Zone 1, Zone 2, Zone 21, Zone 22, Temperature Class T4 | |
This AGV is certified with Ex db eb ib IIB T4 Gb and Ex ib tb IIIC T130℃ Db ratings, making it suitable for hazardous environments including Zone 1/2 explosive gas and Zone 21/22 explosive dust conditions.
The AGV uses Laser SLAM (LiDAR and visual fusion technology) for navigation, achieving a high-precision stop positioning accuracy of ±10mm / ±1°.
It features an explosion-proof, maintenance-free lead-acid battery with a capacity of 48V/33AH, providing up to 8 hours of rated working time on a 6 to 8-hour charge.
The AGV features omnidirectional mobility, allowing it to perform forward/backward travel, rotation in place, and arc turning, making it highly flexible for complex, narrow spaces.
It includes systematic safety systems such as equipotential bonding, static electricity protection, temperature monitoring, leakage detection, emergency stop buttons, acoustic/optical alarms, voice broadcasts, explosion-proof laser radar, and safety edges.
