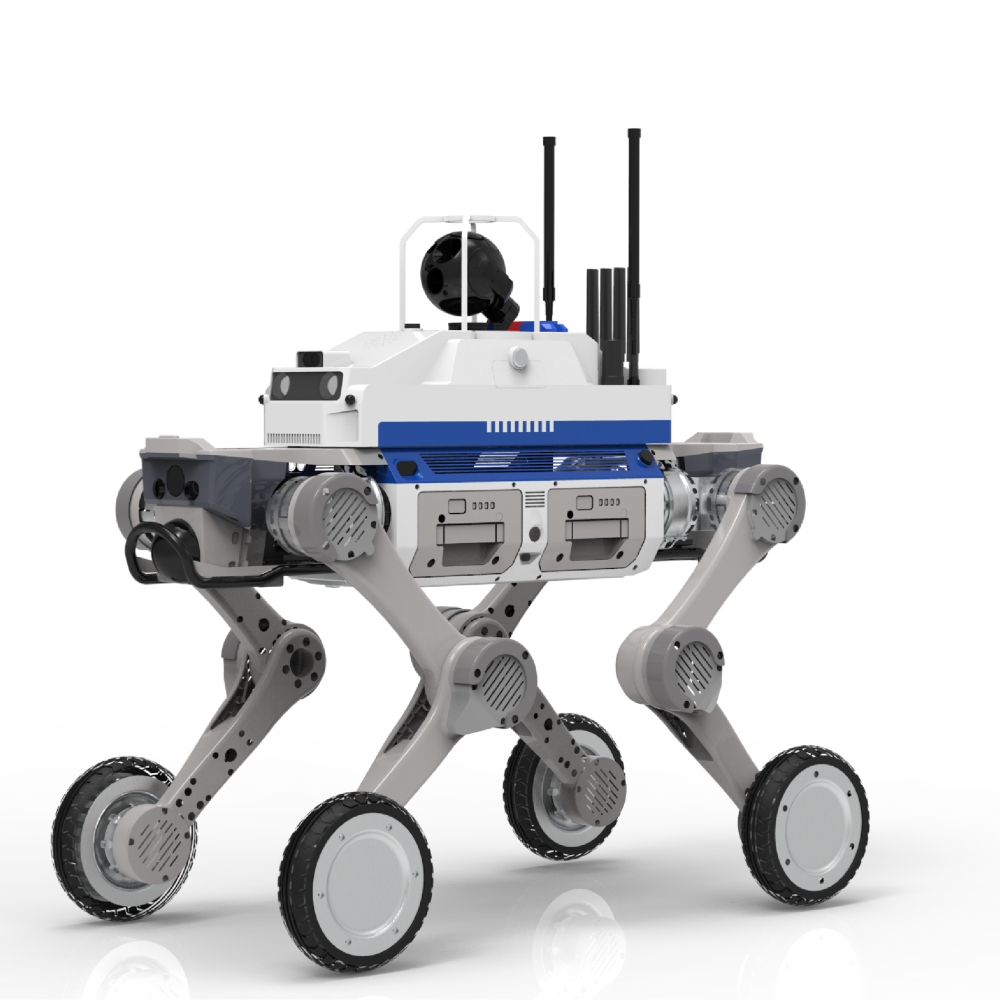

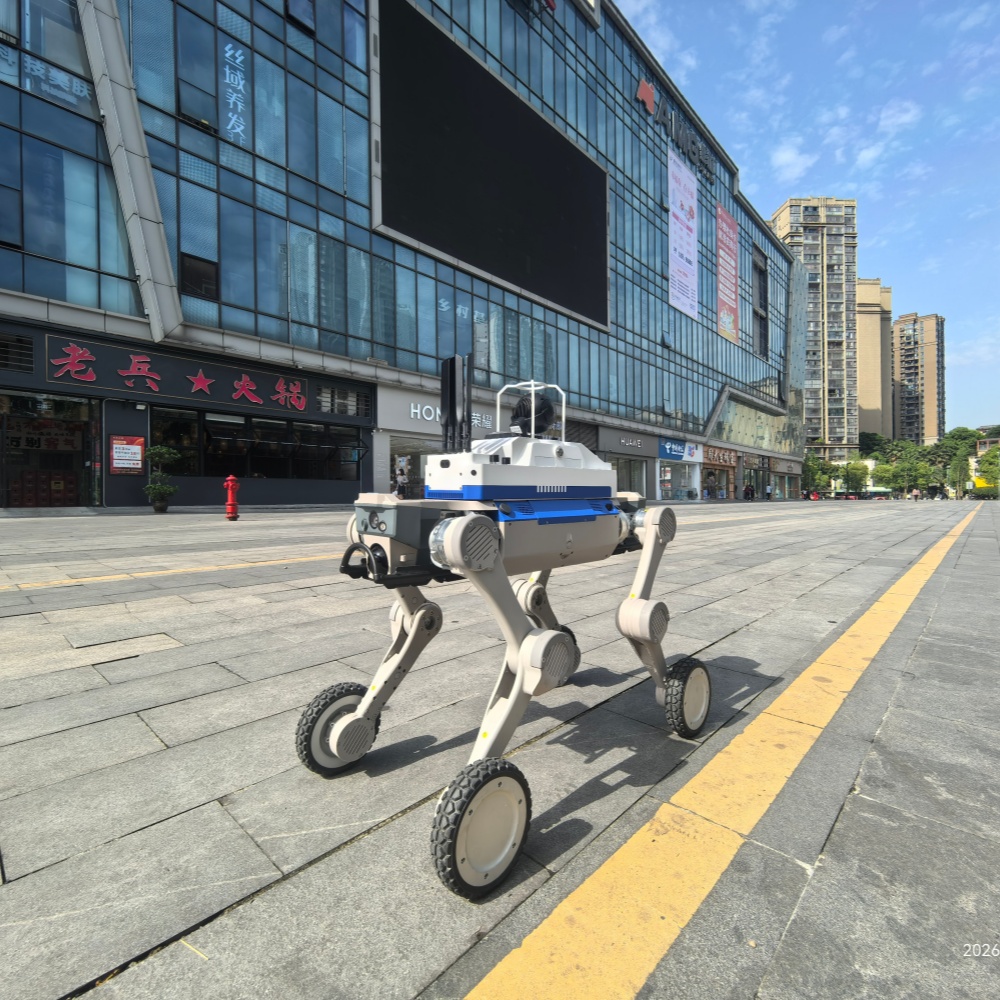

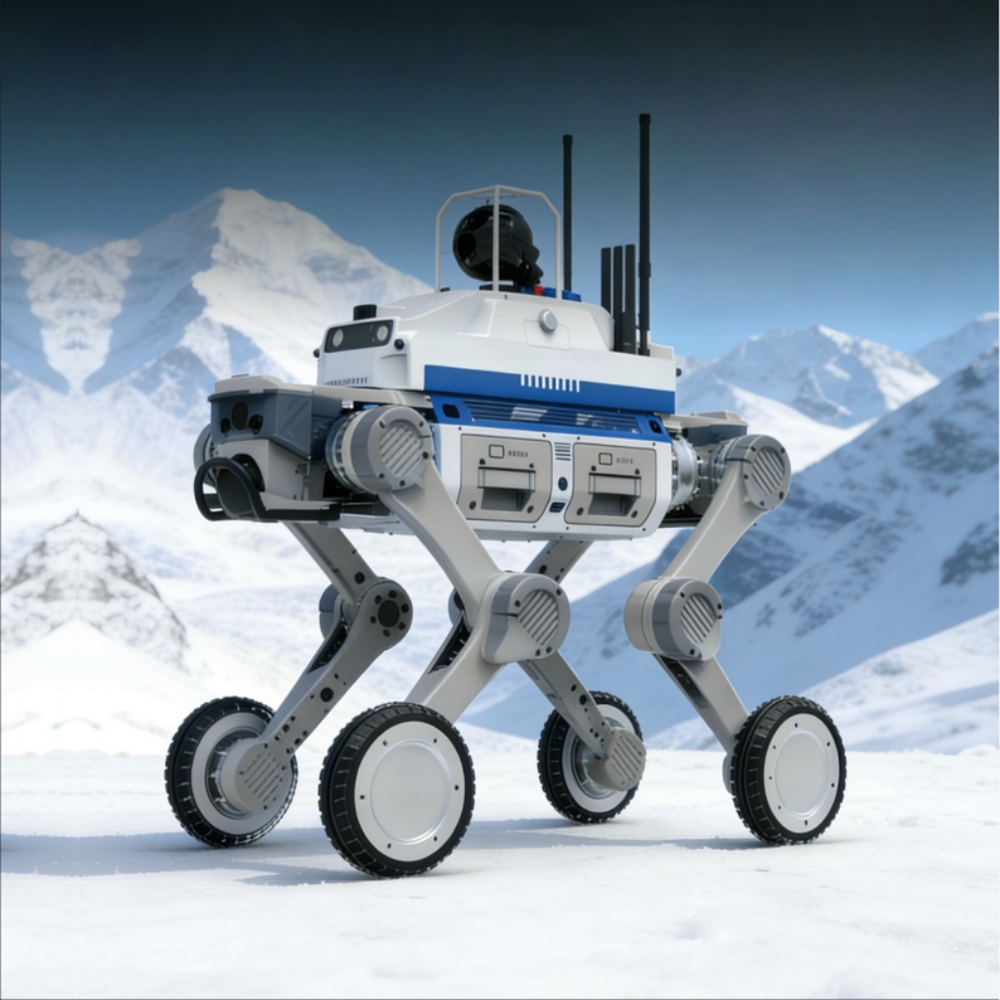

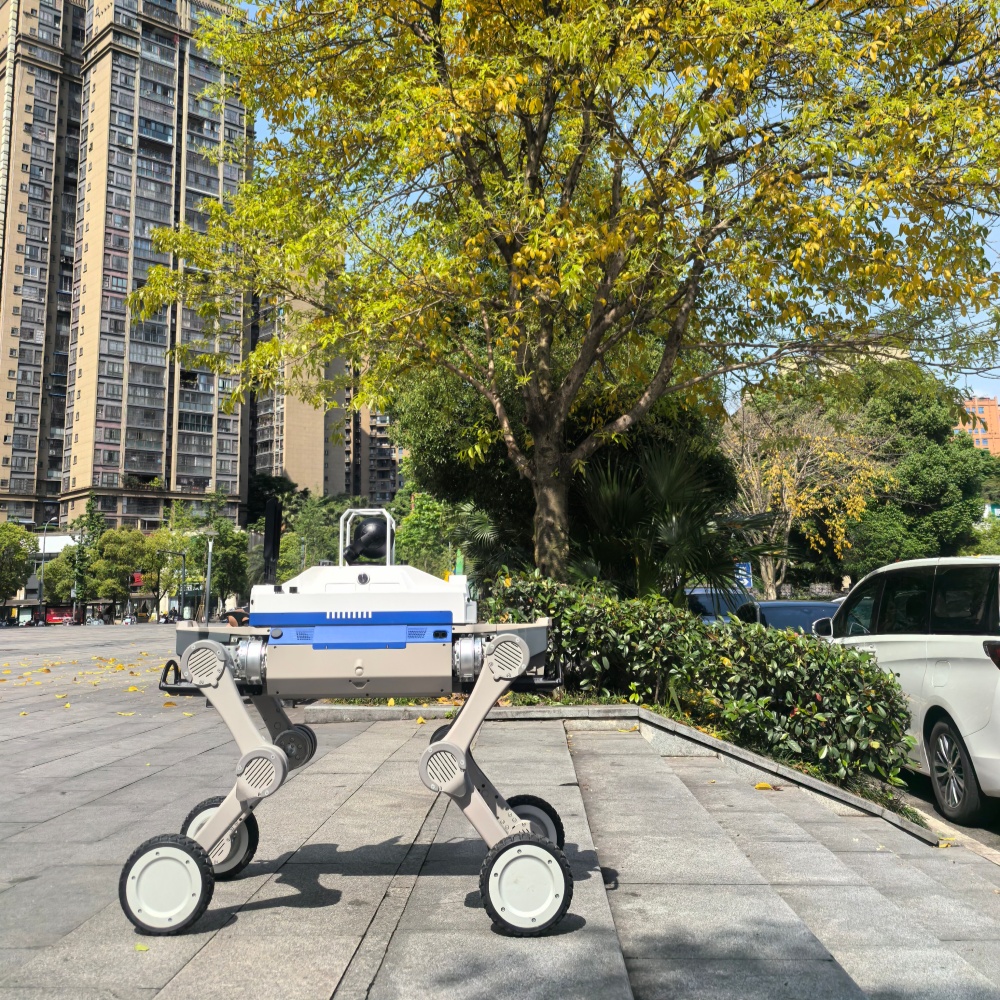

All-Weather Smart Inspection Robot from China Suppliers - Revolutionizing Safety and Efficiency in Inspections
Key Features
Combining the speed of wheeled motion with the adaptability of legged locomotion, the robot ensures efficient operation across diverse and complex terrains.
Integrated with LiDAR, panoramic cameras, ultrasonic sensors, and gas detectors to build a comprehensive perception system. Powered by advanced AI vision algorithms for real-time detection of violations and potential hazards—nothing goes unnoticed.
Real-time data transmission and automatic report generation enable a fully integrated workflow of "Perception-Decision-Execution", forming a closed-loop intelligent system.
Dual battery system with hot-swappable design ensures uninterrupted 24/7 inspection. High-precision SLAM navigation and dynamic path planning continuously improve inspection coverage and efficiency.

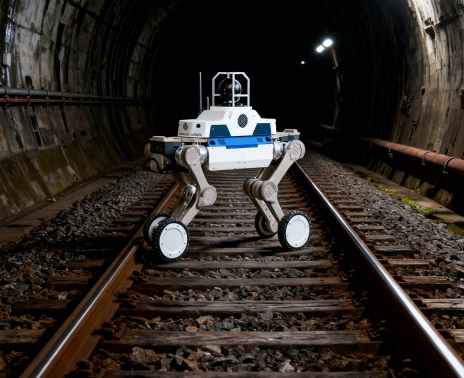

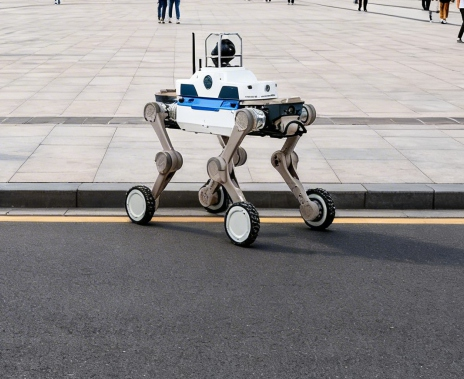

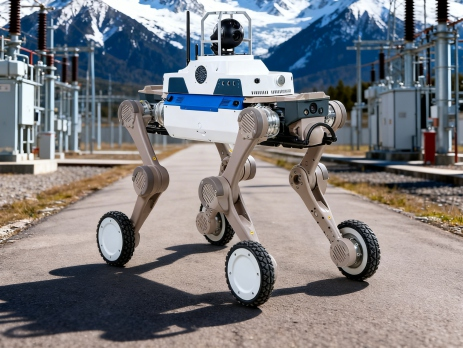

Application Scenarios
Product Parameters
| Material | Aluminum alloy+high-strength engineering plastics |
| Dimensions(Standing) | 920mm(L)×510mm(W)×880mm(H) |
| Weight | 50kg |
| Battery | 54V,9.35Ah×2 dual-battery system,supports hot-swapping |
| Endurance | ≥3.5h |
| Drive System | Electrically driven wheeled-quadruped system |
| Obstacle Capability | Continuous climbing height(stairs)≥25cm;Maximum Single-Step Climbing Height≥50cm |
| Climbing Ability | Slope≥45°;stairs±45° |
| Max Speed | ≥6m/s |
| Mobility Functions | Supports multiple motion modes including stepping,rolling,and crawling;capable of forward/backward/lateral movement and in-place rotation;supports knee joint posture adjustment;adaptable to various terrains such as gravel,asphalt,grass,sand,forest floors,and construction debris |
| Operating Temperature | -20℃~55℃ |
| Protection Rating | IP65 |
| Two-Way Audio | Equipped with voice interaction module for remote two-way communication |
| Perception System | Supports visible light & thermal imaging,multi-gas detection,temperature&humidity sensing,multi-factor detection,360° surround view,environmental perception,3D mapping,autonomous navigation,positioning,and obstacle avoidance |
| Communication Module | Gigabit Ethernet,Type-C interface,5G public network/private network/Wi-Fi,supports dual transmission and reception |
| Handheld Control Station | Customizable screen size with high resolution;supports Wi-Fi,Bluetooth,and Gigabit Ethernet;equipped with USB 3.0,HDMI,SIM card slot,microphone,and other external interfaces;enables robot motion control and payload module operation;supports real-time HD video monitoring,recording,and display of robot status such as battery level,signal strength,and gas concentration |
| Software Deployment | Supports real-time data transmission(including but not limited to video,operational status,and positioning data)to designated digital platforms |
Frequently Asked Questions
What are the main advantages of the wheel-leg integration design?
The wheel-leg integration combines the high speed and efficiency of wheeled movement on flat surfaces with the superior obstacle-clearing and terrain-adaptability of quadruped (legged) locomotion on rough terrains, stairs, and slopes.
How long does the robot's battery last and does it support continuous work?
The robot features a dual-battery system (54V, 9.35Ah×2) providing an endurance of ≥3.5 hours. It supports hot-swapping, allowing batteries to be replaced without powering down, ensuring 24/7 continuous operation.
What kind of hazards and environmental data can the robot detect?
Equipped with a multi-sensor fusion system (LiDAR, panoramic cameras, thermal imaging, and gas detectors), the robot can detect safety violations, potential structural hazards, gas leaks, and temperature or humidity abnormalities.
Is the robot suitable for harsh outdoor weather conditions?
Yes, the robot is built with aluminum alloy and high-strength engineering plastics, rated at IP65 for dust and water resistance, and can reliably operate in temperatures ranging from -20℃ to 55℃.
How does the robot transmit data to operators?
The robot supports high-speed communication via 5G public/private networks, Wi-Fi, and Gigabit Ethernet, enabling real-time transmission of HD video, positioning data, and environmental reports to designated digital platforms and the handheld control station.
